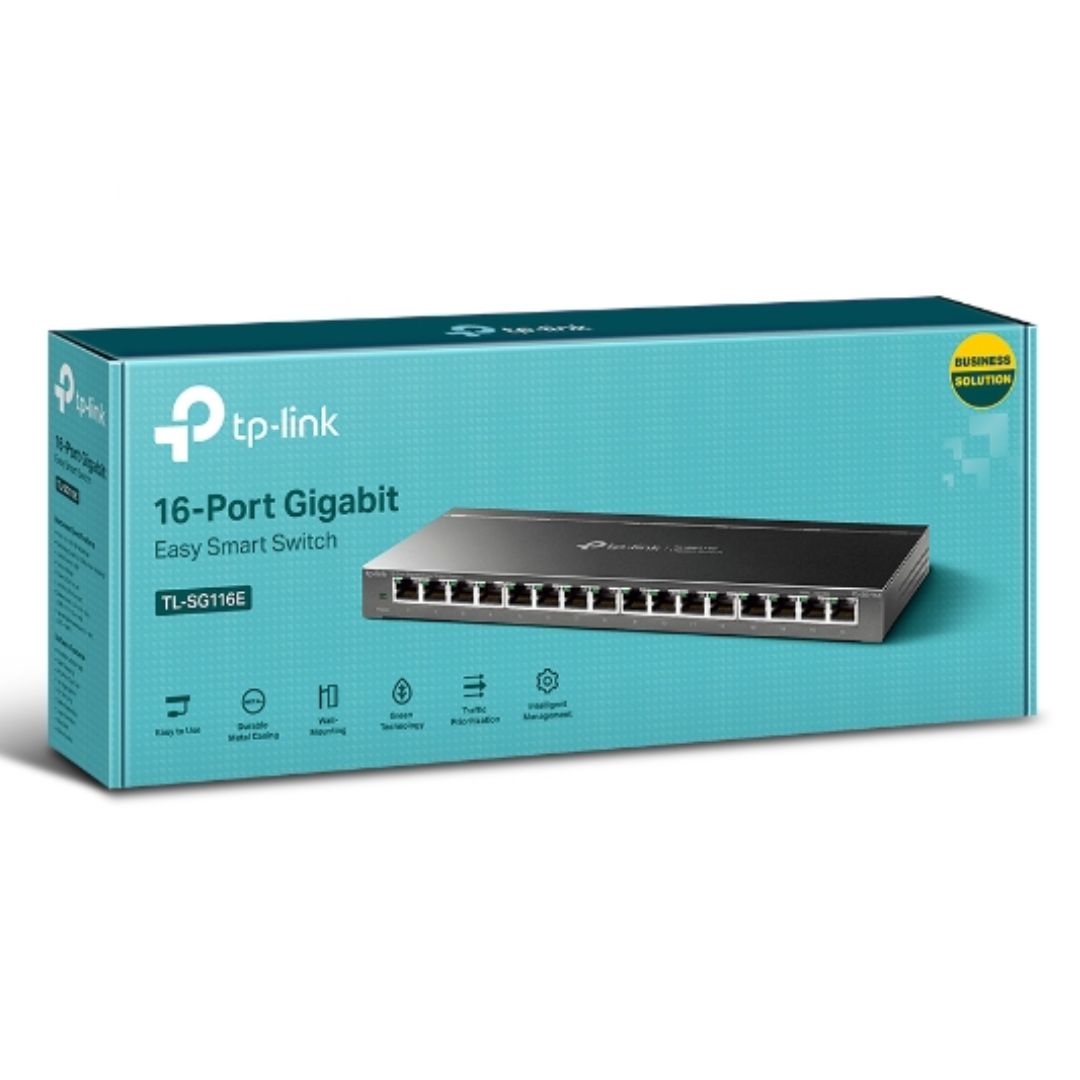

TP-Link TL-SG116E | 16-Port Gigabit Easy Smart Switch | VLAN & QoS | Fanless
TL-SG116E
No reviews
- In stock, ready to ship
- Backordered, shipping soon
Expand your office or home network with the TP-Link TL-SG116E, a 16-port Gigabit switch with simple web-based management. Plug-and-play connectivity gets devices connected quickly, while VLAN and QoS controls let you organise traffic as your network grows. Its fanless metal enclosure keeps operation quiet on a desktop or wall.
Key Features
- 16 Gigabit ports: Connect computers, printers and other Ethernet devices with auto-negotiation and Auto MDI/MDIX.
- Easy management: Configure network settings through the web interface or downloadable utility.
- VLAN segmentation: Supports MTU, port-based and tag-based VLANs, with up to 32 VLANs simultaneously.
- Traffic prioritisation: Port-based, 802.1p and DSCP QoS with four priority queues, rate limiting and storm control.
- Network diagnostics: Cable diagnostics, port mirroring and loop prevention help maintain connectivity.
- Multicast and aggregation: IGMP Snooping V1/V2/V3 and static link aggregation support flexible network operation.
- Quiet, flexible installation: Fanless metal casing supports desktop or wall mounting.
Specifications
| Specification | Details |
|---|---|
| SKU | TL-SG116E |
| Ports | 16 × 10/100/1000 Mbps RJ45 |
| Switching capacity | 32 Gbps |
| Packet forwarding rate | 23.81 Mpps |
| MAC address table | 8K entries |
| Packet buffer | 4.1 Mb |
| Jumbo frames | 9 KB |
| VLAN support | Up to 32 simultaneous VLANs from 4K VLAN IDs; MTU, port and tag VLAN |
| Management | Web interface and downloadable utility |
| Power supply | External adapter, 9 V DC / 0.6 A output |
| Maximum power consumption | 9.27 W at 220 V / 50 Hz |
| Dimensions (W × D × H) | 286 × 111.7 × 25.4 mm |
| Cooling | Fanless |
| Mounting | Desktop or wall |
