Scan, decode and organize all your barcodes and QR codes with the YHDAA YHD-5800DB 2D Wireless Bluetooth Scanner. Easily connect to your device with Bluetooth and conveniently use the stand for hands-free scanning. 📲 Don't let a cluttered workspace slow you down! 🚀

Description

HID/SPP Mode and can switch.
Supports Bluetooth/2.4G wireless, 2modes for option.
Supports Handheld/Continuous/Auto-Induction , 3modes for option.
Support over sixteen different countries' keyboard layout.
Excellent decoding ability, high speed and low error rate.
Built-in 2600mAh battery, super-long standby time.

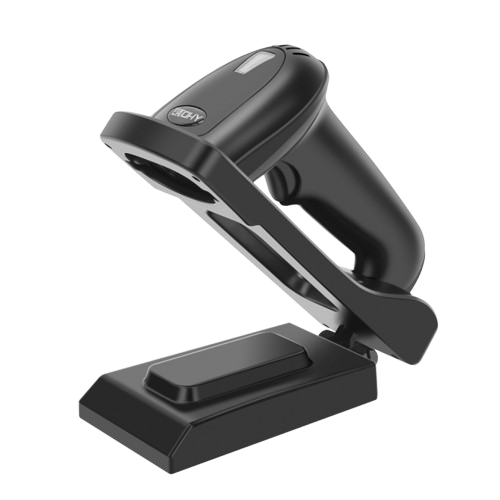

Comes with adjustable scanner stand, Base supports data transmission and battery charging.
Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile phone and
computer screen, and it also can read 2D barcodes.
Can be customized according to customer demand.

Technical parameters

Product Specification: YHD-5800DB 2D Wireless Bluetooth Barcode Scanner
Scanner parameters:
Transmission mode：Bluetooth/2.4G/Wired		Storage：100,000 barcodes
Distance：50m/100m/1.5m		Sensor：640*480 CMOS
CPU：ARM 32-bit Cortex		Battery: 3.7V-2600mAh
Indication：Buzzer & LED		Light aimer： 617nm LED
Resolution ：4mil		Anti-inference：0-100000Lux Max
Decoding speed：500scans/sec		Illumination： 6500K LEDs
Printing Contract ：≥25%		Interface：USB，USB-COM
Button life ：8000,000 times		Material: ABS+PC
Trigger Mode：Handheld,Continuous,Auto-Induction
Depth Of Field	13mil-EAN13	50-250mm
	4mil-code39	60-100mm
	20mil-QR	40-300mm
	10mil-PDF417	40-280mm
Decode Capability： 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5， Coda bar，MSI Plessey，RSS，etc. 2D: QR Code, Data Matrix，PDF417，Aztec code，Maxicode，etc.
Scanning angle：Angle of rotation360°，inclination± 65°，declination ± 60°
Working current：3.3Vx200mA		Standby current ：18uA-5mA
Working time ：3 to 10 days		Charging power：5V-400mA
Net Weight: 400g
Certificate ：CE，FCC，RoHS，IP54		Drop test ：2m
