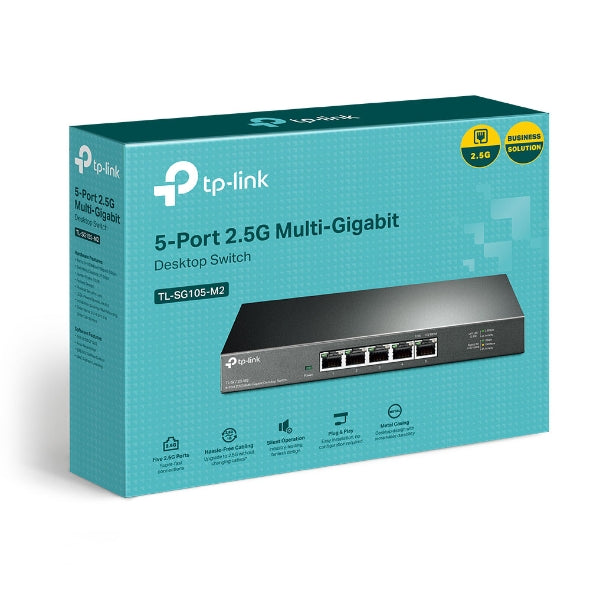

TP-Link TL-SG105-M2 | 5-Port 2.5G Switch | Fanless | 5-Year Warranty
TL-SG105-M2
No reviews
- In stock, ready to ship
- Backordered, shipping soon
The TP-Link TL-SG105-M2 adds five multi-gigabit Ethernet ports to a home or small-office network. Connect compatible NAS devices, computers and access points at up to 2.5Gbps per port, with automatic negotiation for supported lower speeds. Its fanless metal housing and desktop or wall-mount design suit a quiet workspace.
Key features
- Five multi-gigabit ports: Each RJ45 port supports 100Mbps, 1Gbps and 2.5Gbps connections with compatible devices.
- 25Gbps switching capacity: Aggregate switching capacity, not the speed of a single connection or a guaranteed internet speed.
- Plug-and-play setup: Automatic negotiation and Auto-MDI/MDIX simplify wired connections.
- Fanless design: Avoids cooling-fan noise in office and home environments.
- Flexible placement: Metal housing supports desktop or suitable wall mounting.
- Traffic handling: Listed 802.1p/DSCP QoS and 802.3x flow control support network traffic management.
Specifications
| SKU | TL-SG105-M2 |
|---|---|
| Brand | TP-Link |
| Model | TL-SG105-M2 |
| Ports | 5 × RJ45, 100Mbps / 1Gbps / 2.5Gbps |
| Port features | Auto-negotiation, Auto-MDI/MDIX |
| Switching capacity | 25Gbps |
| Forwarding rate | 18.6Mpps |
| MAC address table | 16K |
| Packet buffer | 1.5Mb, as listed |
| Jumbo frames | 10KB |
| Transfer method | Store-and-forward |
| Cooling | Fanless |
| Power supply | External adapter, 12V DC / 1A |
| Maximum power consumption | 12.11W, as listed |
| Dimensions (W × D × H) | 209 × 126 × 26mm |
| Operating temperature | 0–40°C |
| Included items | Switch, power adapter, installation guide and rubber feet |
| Warranty | 5 years, as listed |
Actual transfer speeds depend on connected devices, cabling and network conditions. Existing cabling suitability must be checked; a 2.5Gbps link is not guaranteed on every cable installation. Connected access points and other devices need their own suitable power source; this listing does not specify PoE output.
