TP-Link SX3206HPP 4 × 10G PoE++ + 2 × 10G SFP+

TP-Link SX3206HPP | 4 × 10G PoE++ + 2 × 10G SFP+ | 200W

SX3206HPP

Regular price$825.00
/
Shipping calculated at checkout.
  • Low stock - 2 items left
  • Backordered, shipping soon
🚚 Shipping calculated at checkout.

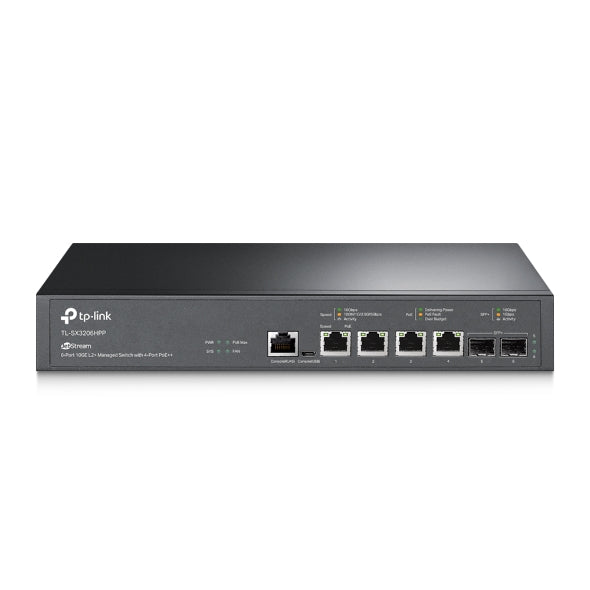

The TP-Link SX3206HPP JetStream is a six-port 10G L2+ managed switch with four 10G RJ45 PoE++ outputs and two 10G SFP+ slots. Its listed 200W shared PoE budget supports compatible powered devices while providing separate SFP+ connection options for your network.

Key features

  • Four 10G RJ45 connections with PoE++: The supplied information lists IEEE 802.3af/at/bt support and up to 60W PoE output per RJ45 port, subject to compatibility and the shared budget.
  • Two additional 10G SFP+ slots: Provide high-speed module-based links. These slots are not PoE outputs; confirm supported transceivers and cables separately.
  • Listed 200W shared PoE budget: Plan combined powered-device demand within the total allowance. All four RJ45 ports cannot deliver their listed 60W individual maximum simultaneously.
  • L2+ switching and static routing: Listed static routing supports internal traffic routing, while QoS and IGMP Snooping provide traffic-prioritisation and multicast-management options.
  • Omada SDN integration: Supplied information lists centralised cloud access and remote management. Confirm controller, software and service requirements for your deployment.
  • Standalone management options: Listed web, CLI through console, Telnet or SSH, SNMP and RMON support local management. Dual Image is also listed.

Specifications

SKU SX3206HPP
Brand TP-Link
Product family JetStream / Omada SDN-compatible, as listed
Management L2+ managed
RJ45 ports 4 × 10G RJ45 with PoE++ output
SFP+ slots 2 × 10G SFP+; no PoE output
Total network connections 6: four RJ45 ports and two SFP+ slots
PoE standards IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
Individual PoE output limit Up to 60W per RJ45 port listed, within shared budget
Total PoE budget 200W listed, shared across four PoE outputs
Listed network features Static routing, QoS and IGMP Snooping
Standalone management Web, CLI (console, Telnet, SSH), SNMP and RMON
Additional listed feature Dual Image

Specifications are based on original supplied product information and have not been independently manufacturer-verified. Confirm hardware revision, supported link speeds, device PoE compatibility, individual port limits and applicable power-budget conditions before installation. Maximum per-port power is not available on every PoE port simultaneously. Confirm SFP+ transceiver and cable compatibility, controller requirements and accessory inclusion separately.
