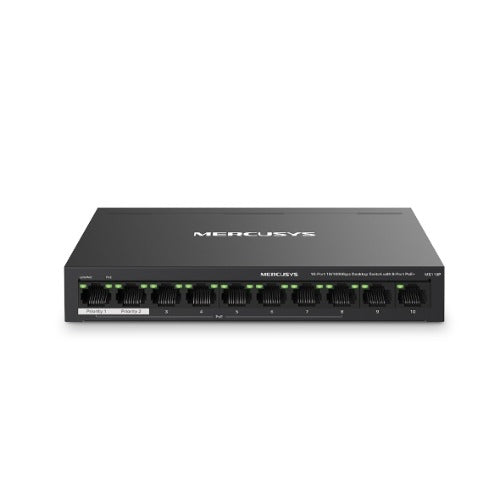

Mercusys MS110P 10-Port 10/100Mbps Switch

Mercusys MS110P | 10-Port 10/100Mbps Switch | 8 PoE+ Ports | 65W | 5-Year Warranty

MS110P

Regular price$76.70 AUD
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon
🚚 Shipping calculated at checkout.

The Mercusys MS110P is a ten-port 10/100Mbps desktop switch with eight PoE+ outputs and two non-PoE uplink ports. Its listed 65W shared PoE budget supports compatible powered devices within individual port limits and the combined allowance. The two uplinks are included in the ten-port total, and all ten ports are Fast Ethernet, not Gigabit.

Key features

  • Ten Fast Ethernet connections: Ten 10/100Mbps RJ45 ports comprise eight PoE+ outputs and two non-PoE uplinks. The uplinks are not additional ports beyond the ten-port total.
  • Eight IEEE 802.3af/at PoE+ outputs: Carry data and power on the same cable to compatible powered devices, with up to 30W per PoE port listed.
  • Listed 65W shared budget: Keep combined powered-device demand within the total allowance. All eight PoE ports cannot deliver their listed 30W individual maximum simultaneously.
  • Isolation Mode with two uplinks: The supplier lists traffic separation for specific ports and two uplink connections when Isolation Mode is enabled, described for Internet and NVR connections. Confirm supported topology and mode behaviour for your installation.
  • PoE Auto Recovery: Supplied information lists automatic restarting of dropped or unresponsive PoE-powered devices to help restore operation.
  • Qualified Extend Mode: Supplied information lists PoE transmission up to 250m. Confirm supported ports, link speed, cable and powered-device conditions; maximum distance is not a guarantee of normal 100Mbps performance.
  • Metal desktop housing and plug-and-play setup: The supplied listing describes metal casing and straightforward basic switching without configuration.

Specifications

SKU MS110P
Brand Mercusys
Total Ethernet ports 10 × 10/100Mbps RJ45; Fast Ethernet, not Gigabit
PoE+ output ports 8 × 10/100Mbps RJ45
Non-PoE uplink ports 2 × 10/100Mbps RJ45; included in the ten-port total
PoE standards IEEE 802.3af / IEEE 802.3at
Individual PoE output limit Up to 30W per PoE port listed, within shared budget
Total PoE budget 65W listed, shared
Traffic separation Isolation Mode for specific ports, with two uplinks as listed
PoE recovery PoE Auto Recovery, as listed
Extend Mode Up to 250m listed; supported ports, link speed, cabling and power conditions require confirmation
Housing and installation Metal casing; desktop
Listed warranty 5 years, according to supplied information

Specifications are based on original supplied product information and have not been independently manufacturer-verified. Confirm hardware revision, device PoE compatibility, individual port limits and applicable power-budget conditions before installation. Maximum per-port power is not available on every PoE port simultaneously. Extended-distance operation may reduce link speed and depends on supported ports, cabling and device power demand. Confirm accessory inclusion and warranty terms for the supplied regional version.
