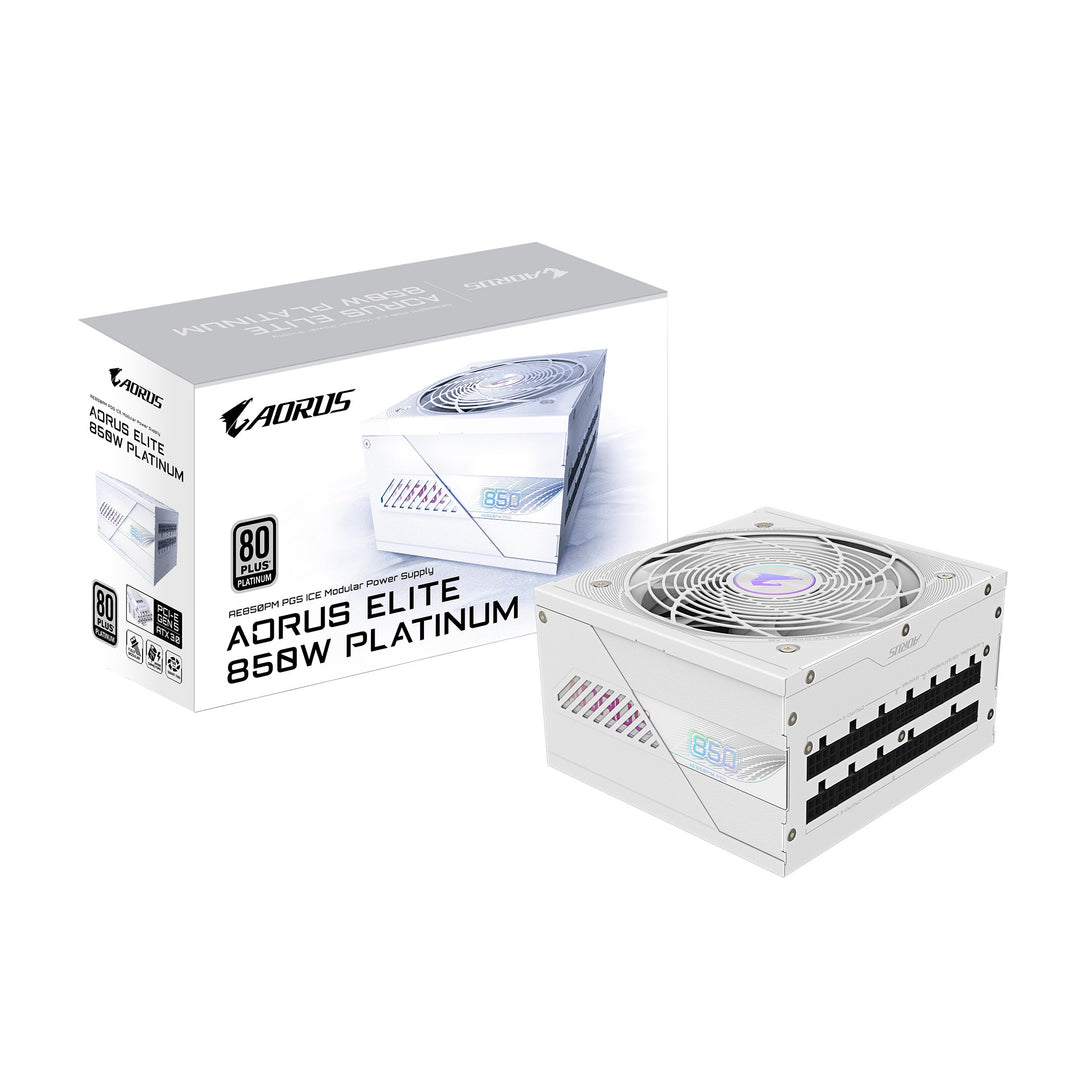

Gigabyte GP-AE850PM PG5 ICE 850W PSU | ATX 12V v3.0 | 80 PLUS Platinum | FDB Fan | All White Cables
GP-AE850PM PG5 ICE
No reviews
- In stock, ready to ship
- Backordered, shipping soon
Build clean, build powerful. The Gigabyte GP-AE850PM PG5 ICE delivers 850W of 80 PLUS Platinum-certified power with a fully modular all-white flat cable design — perfect for white or showcase builds. ATX 12V v3.0 compliance ensures compatibility with the latest GPUs, while the 120mm Fluid Dynamic Bearing fan keeps things whisper-quiet under load.
Key Features
- 850W Output: Ample headroom for high-end gaming and workstation builds.
- 80 PLUS Platinum Certified: 92% efficiency at typical load — less heat, lower power bills.
- ATX 12V v3.0: Full compatibility with the latest Intel platform and next-gen GPUs including PCIe 5.0 16-pin connector.
- 120mm FDB Fan: Fluid Dynamic Bearing fan for ultra-quiet, long-lasting cooling.
- All-White Flat Cables: Clean cable management for premium aesthetic builds.
- Active PFC (>0.9): Stable power delivery across full input voltage range (100–240V).
- Comprehensive Protection: OVP, OPP, SCP, UVP, OCP, OTP for full system safety.
- 100,000+ Hour MTBF: Built for long-term reliability.
Specifications
| Feature | Detail |
|---|---|
| SKU | GP-AE850PM PG5 ICE |
| Form Factor | ATX 12V v3.0 |
| Output | 850W |
| Efficiency | 80 PLUS Platinum (92% typical) |
| PFC | Active PFC (>0.9) |
| Input Voltage | 100–240V (full range) |
| Fan | 120mm FDB |
| Dimensions | 150 × 140 × 86mm |
| MTBF | >100,000 hours |
| Connectors | ATX 20+4 ×1, CPU 4+4 ×2, PCIe 16-pin ×1, PCIe 6+2 ×6, SATA ×8, 4-pin ×4 |
| Cable Type | Flat, all white |
