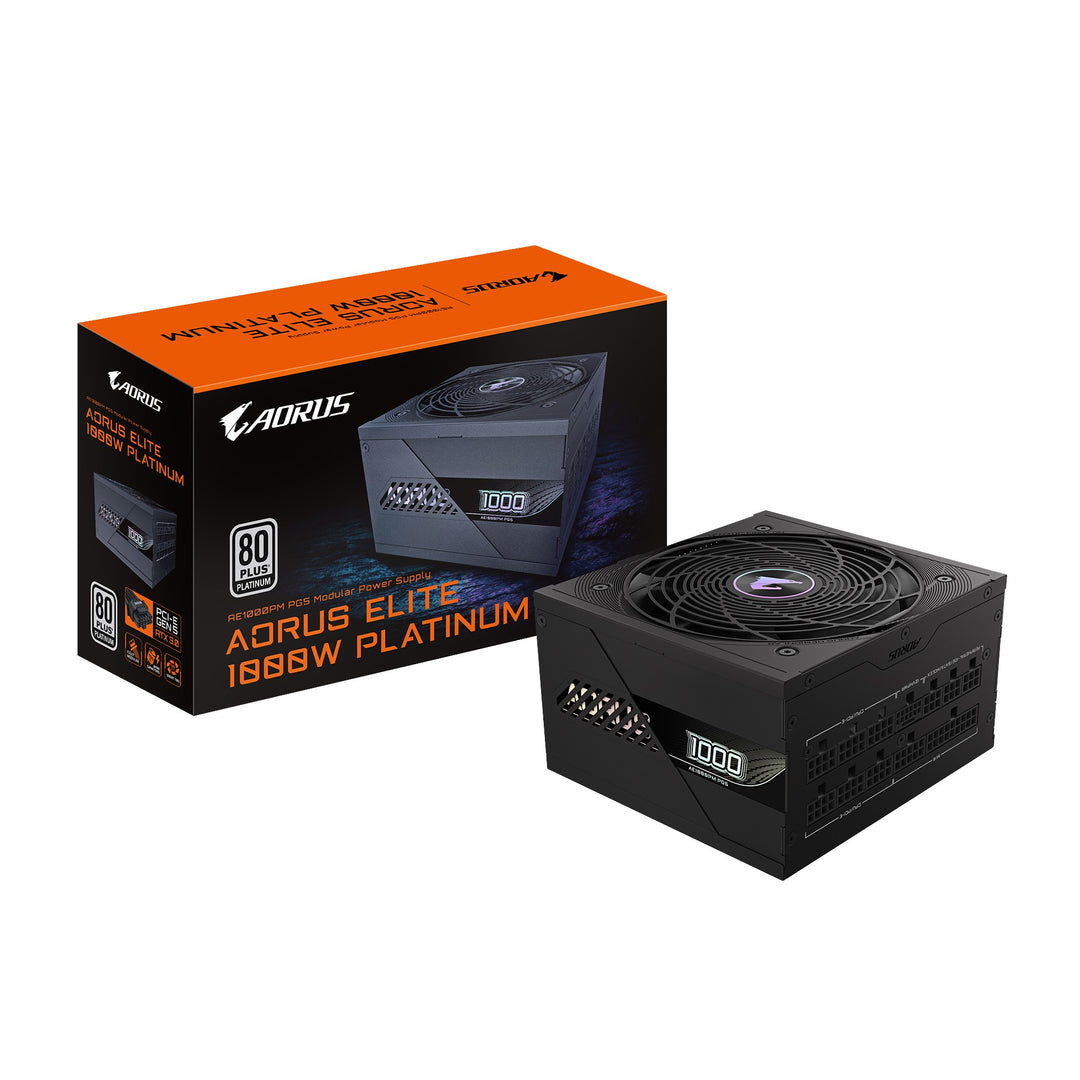

Gigabyte GP-AE1000PM PG5 1000W PSU | ATX 12V v3.0 | 80 PLUS Platinum | FDB Fan | All Black Cables
GP-AE1000PM PG5
No reviews
- In stock, ready to ship
- Backordered, shipping soon
Power your most demanding build with confidence. The Gigabyte GP-AE1000PM PG5 delivers 1000W of 80 PLUS Platinum-certified power with a fully modular all-black flat cable design. ATX 12V v3.0 compliance ensures compatibility with the latest GPUs and PCIe 5.0 connectors, while the 120mm Fluid Dynamic Bearing fan keeps noise to a minimum even under full load.
Key Features
- 1000W Output: Handles high-end multi-GPU and overclocked workstation builds with headroom to spare.
- 80 PLUS Platinum Certified: 92% efficiency at typical load — less heat, lower power bills.
- ATX 12V v3.0: Full compatibility with the latest Intel platform and next-gen GPUs including PCIe 5.0 16-pin connector.
- 120mm FDB Fan: Fluid Dynamic Bearing fan for ultra-quiet, long-lasting cooling.
- All-Black Flat Cables: Clean cable management for stealth and premium builds.
- Active PFC (>0.9): Stable power delivery across full input voltage range (100–240V).
- Comprehensive Protection: OVP, OPP, SCP, UVP, OCP, OTP for full system safety.
- 100,000+ Hour MTBF: Built for long-term reliability.
Specifications
| Feature | Detail |
|---|---|
| SKU | GP-AE1000PM PG5 |
| Form Factor | ATX 12V v3.0 |
| Output | 1000W |
| Efficiency | 80 PLUS Platinum (92% typical) |
| PFC | Active PFC (>0.9) |
| Input Voltage | 100–240V (full range) |
| Fan | 120mm FDB |
| Dimensions | 150 × 140 × 86mm |
| MTBF | >100,000 hours |
| Connectors | ATX 20+4 ×1, CPU 4+4 ×2, PCIe 16-pin ×1, PCIe 6+2 ×6, SATA ×8, 4-pin ×4 |
| Cable Type | Flat, all black |
