Asus B660 M Prime B660 M A Wifi D4 Intel Lga 1700 M Atx Motherboard Pc Ie 4.0, 2x M.2, Intel 1 Gb Ethernet, Intel Wi Fi 6, Dp, 2x Hdmi

Asus B660 M Prime B660 M A Wifi D4 Intel Lga 1700 M Atx Motherboard Pc Ie 4.0, 2x M.2, Intel 1 Gb Ethernet, Intel Wi Fi 6, Dp, 2x Hdmi

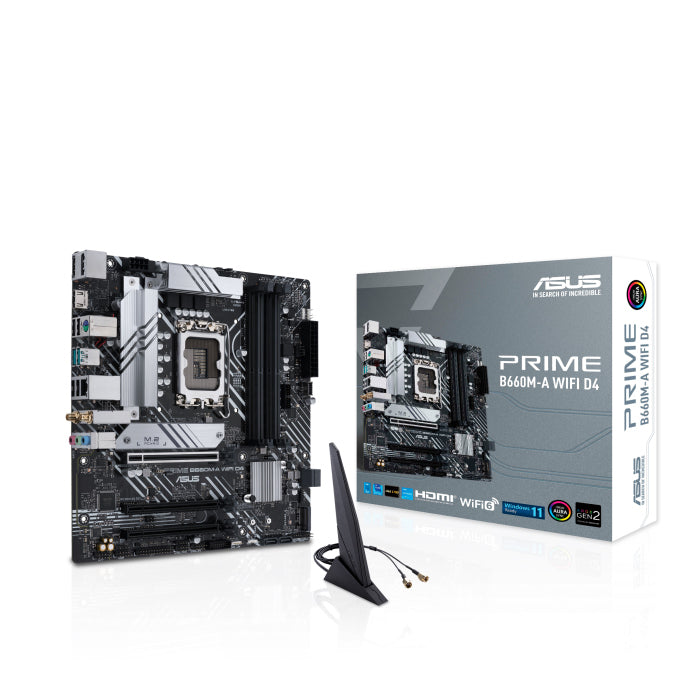

PRIME B660M-A WIFI D4

Regular price$200.00 AUD
/
Shipping calculated at checkout.
  • Low stock - 6 items left
  • Backordered, shipping soon

ASUS PRIME B660M-A WIFI D4 Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, Intel® Wi-Fi 6 , DP,2 x HDMI® , rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync

Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
Ultrafast connectivity : Intel® Wi-Fi 6, PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C®
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset Intel® B660 Chipset

Memory
4 x DIMM, Max. 128GB, DDR4
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x DisplayPort**
2 x HDMI® ports***

Expansion Slots
Intel® 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel® B660 Chipset *
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x16 slot (supports x1 mode)

Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 1Gb Ethernet

Wireless & Bluetooth
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

Form Factor
microATX 24.4cm x 24.4cm
