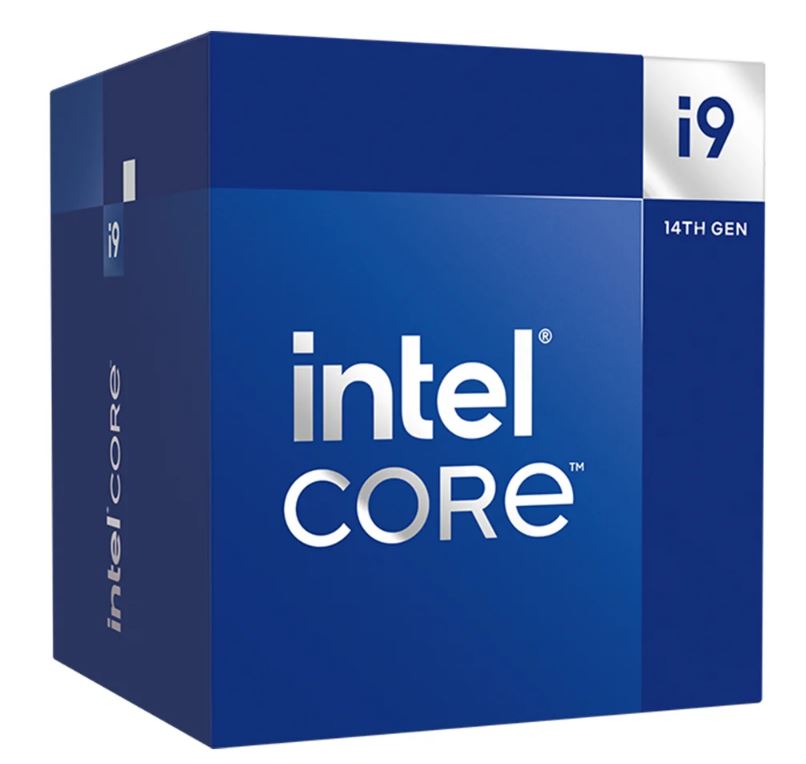

Intel I9 14900 Cpu 4.3 G Hz (5.8 G Hz Turbo) 14th Gen Lga1700 24 Cores 32 Threads 68 Mb 65 W Uhd Graphics 770 Retail Raptor Lake With Fan
BX8071514900-L
- In stock, ready to ship
- Backordered, shipping soon
Intel i9 14900 CPU 4.3GHz (5.8GHz Turbo) 14th Gen LGA1700 24-Cores 32-Threads 68MB 65W UHD Graphics 770 Retail Raptor Lake with Fan
Essentials
Product Collection Intel® Core™ i9 Processors (14th gen)
Code Name Products formerly Raptor Lake
Vertical Segment Desktop
Processor Number i9-14900
CPU Specifications
Total Cores 24
# of Performance-cores 8
# of Efficient-cores 16
Total Threads 32
Max Turbo Frequency 5.8 GHz
Intel® Thermal Velocity Boost Frequency 5.8 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.6 GHz
Performance-core Max Turbo Frequency 5.4 GHz
Efficient-core Max Turbo Frequency 4.3 GHz
Performance-core Base Frequency 2 GHz
Efficient-core Base Frequency 1.5 GHz
Cache 36 MB Intel® Smart Cache
Total L2 Cache 32 MB
Processor Base Power 65 W
Maximum Turbo Power 219 W
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported ‡ Yes
GPU Specifications
GPU Name‡ Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.65 GHz
Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0xA780
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes 20
